Mechanical Engineering Components:
- Piston rods induction hardened 42Cr/\to4QT, induction hardened HRC 56-64, ground, hard chrome-plated 20+/-5 pm, polished Ra <—0,30 pm, Tolerance f7
- Precision steel shafts standard version Cf53/ CASE, induction hardened HRC 60-66, ground, polished Ra <=0,30 Inn, Tolerance h6/h7
- Precision steel shafts hard chrome-plated CIS 3/ CASE, induction hardened HRC 60-66, ground, hard chrome-plated 10+/-5 pm, polished Ra s-0,30 qm, Tolerance h6 / h7
- Precision steel shafts stainless 1.4034 X46Cr13, induction hardened=>HRC 54 ground, polished Ra <—0,30 pm, Tolerance h6/h7
- Precision steel shafts stainless I .4112 X90Ci-I oV18, induction hardened HRC 53-59, ground, polished Ra <-0,30 #m, Tolerance h6/h7
- Precision hollow steel shafts C60, induction hardened HRG 60-66, ground, polished Ra «=0,30 qm, Tolerance h6/ n7
- Guide rails C60, induction hardened HRC 60-66, plough ground Ra <=O,80pm, Tolerance IT 9, fine ground Ra <=0,40 pm, Tolerance IT 7 Standard Dimensions: 50 x 50 60 x 20 70 x 20 80 x 20 100 x 25
- N igh-speed-steel 1.3343 NS 6-3-2, through hardened and tempered HRC 62 -66 ground, polished Ra=< 0,30 }Jm o < 20 mm, dimensions on reauest
- Bearing steel 1.3505 100Cr6, through hardened and tempered HRC 58 - 62 ground, polished Ra=< 0,30 {Inn a « 20 mm, dimensions on request

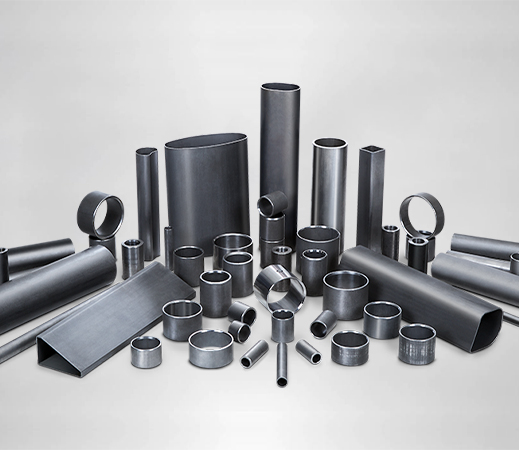

Precision Cold Drawn Seamless Steel Tubes
The tubes are produced by cold drawing precision seamless tubes over a plug through a reducing die, achieving a reduction in outside diameter and wall thickness. The tubes are bright annealed under a closely controlled reducing atmosphere in a highly sophisticated electric heated roller hearth furnace to ensure bright, scale-free tubes free from oxidation, meeting critical end-user requirements.
The tubes are cold straightened, followed by finishing operations, inspection, packing and dispatch. Cold drawn seamless tubes have close dimensional tolerances, better surface finish, refined micro structure etc. These tubes have wide applications in hydraulics, high pressure fuel injection, General Engineering industries and process industries.
Size Range :-
Outside Diameter : 6 mm to 50.80 mm
Wall Thickness : 1 mm to 5 mm
Length of Tubes : Up to 25 Meters
Market Segment :-
Automobile Manufacturers
- Fuel Lines
- Brake Lines
- Oil Lines
Hydraulic System Manufacturers
Heat Exchanger Manufacturers
Boiler Manufacturers
Oil Refineries
Petrochemicals
Fertilizers
Chemicals
Pressure Vessels Manufacturers
Sugar Industry
Engineering
Ship Builders
Defense
Standards
| DIN | DIN 17175 ST35.8 | DIN 17175 ST45.8 | DIN 17175 15Mo3 | DIN 17175 13CrMo44 | DIN 17175 10CrMo910 |
|---|---|---|---|---|---|
| DIN2397 ST35 | DIN2391 ST45 | DIN2391 ST52 | DIN 2391.C.ST37.4 | DIN 2391.C.ST52.3 | |
| DIN2391.C.37.0 | |||||
| EN | 10305-1&10204 | EN 10216-2 | EN10297-1 | ||
| IS | IS 3074 CDS1 | IS 3074 CDS3 | IS 3074 CDS3 | ||
| ASTM | A 179 | A 192 | A 210 GR.A1 | A 201 GR.C | A 333 GR.1 |
| A 333 GR.6 | A 334 GR.1 | A 334 GR.6 | A 335 T5 | A 335 T11 | |
| A 335 T12 | A 335 T22 | A 335 T22 | A 213 P5 | A 213 P11 | |
| A213 P12 | A 213 P22 | A 213 P22 | A 209 GR.T1A | A 199 T5 | |
| A556 GR.C | |||||
| BS | BS 3059.I.320 | BS 3059.II.360 | BS 3059.II.440 | BS 3059.II.620 | BS 3059.II.622 |
| JIS(G3445) | STMK 11A | STMK 12A,B | STMK 13A,B |
Advantages Of Bright Annealed Cold Drawn Seamless Steel Tubes
Precision dimensional control tubes are free of oxides, dirt, etc. Hence simple operations like flushing with oil or compressed air will clean the remaining soot and dust particles in the tubes which will extend the life of the critical components nozzle, pumps, control valves, and others.
